New Computer I built myself
in Oct 2021 |
| Case |
MSI MPG QUIETUDE
100S Tempered Glass E-ATX Mid-Tower Case with
Thermaltake Toughpower GF1 ARGB 850W 80+ Gold Fully Modular Power
Supply |
| Motherboard |
ASUS PRIME
Z590-P/CSM Intel LGA 1200 ATX Motherboard
Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2
slots, 11 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, 2.5 Gb
Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®,
Thunderbolt™ 4 support |
| CPU |
Intel Core i9
11900K 8-Core LGA 1200 3.5GHz Unlocked CPU
ARCTIC Liquid Freezer II 120mm Multi Compatible AIO CPU Water Cooler |
| Memory |
4 x Corsair Vengeance
LPX 64GB (2x 32GB) DDR4 3200MHz Memory Total 256Gb |
| SSD Drives |
Samsung 980 Pro 2TB
PCIe 4.0 NVMe M.2 SSD - MZ-V8P2T0BW |
| Software |
Windows 11
Professional 64-bit |
| Soundcard |
RME
HDSPe RayDAT 72 channel PCI Express Card with 4 input ADAT and 4
output ADAT ports supporting 64 ADAT channels |
| Performance |
ASIO at
48kHz, Hauptwerks Buffer size 0128, Number of Buffers 1,
RME card buffer size 512, Total Sound Delay
11.4 ms @ 48kHz |
| |
Hauptwerk always runs in Real-time priority with
administrator privileges. |
 |
 |
 |
|

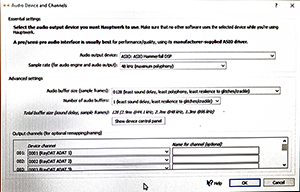

Soundcard
settings |

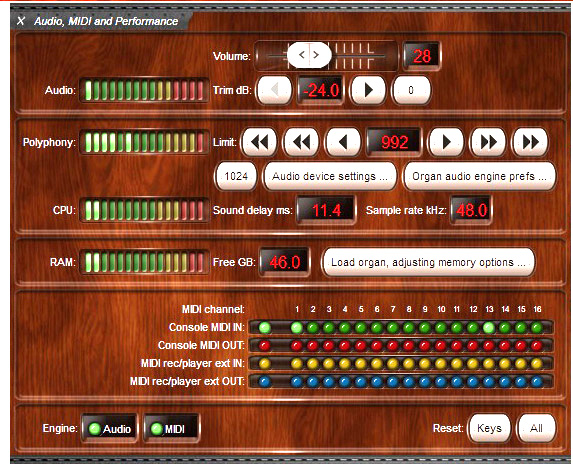

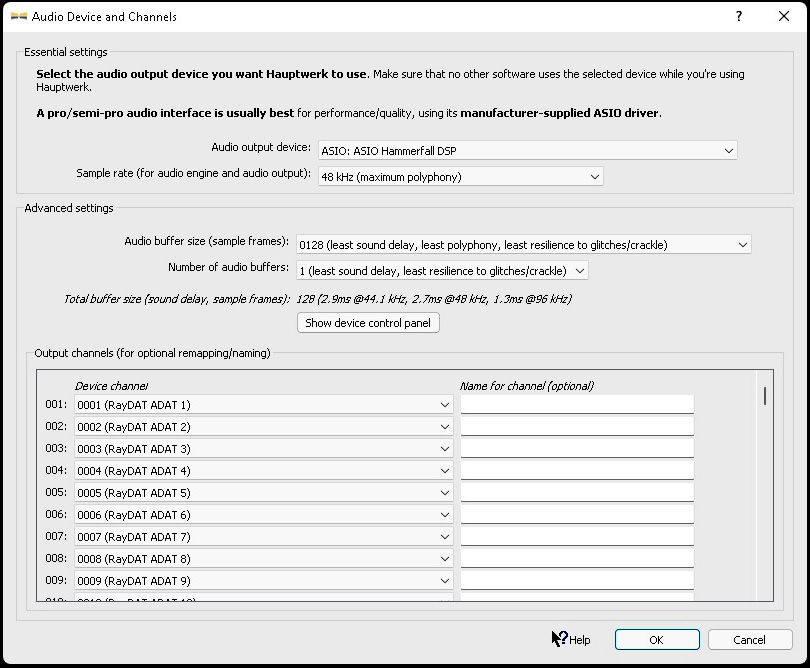

Software settings
CPU will peak at the 4th bar and never
peaks into the red |
RME
HDSPe RayDAT Soundcard |
|
 |
|

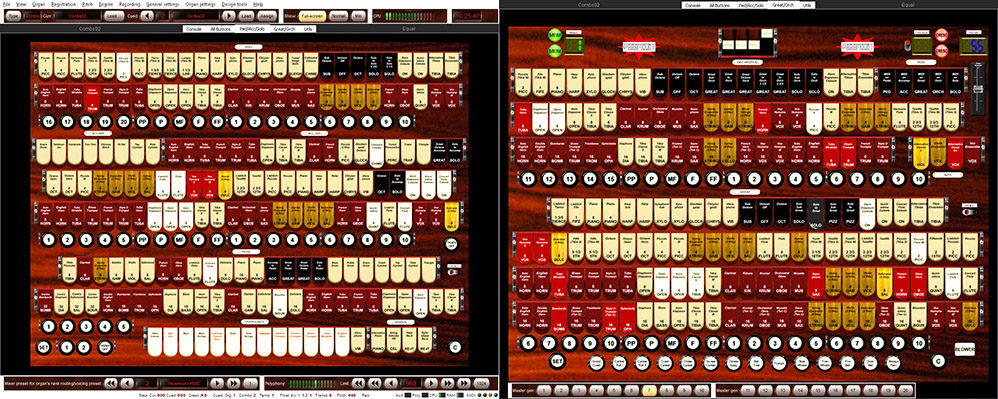

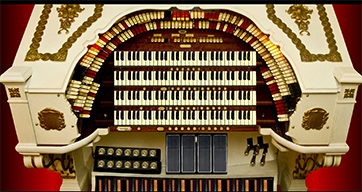

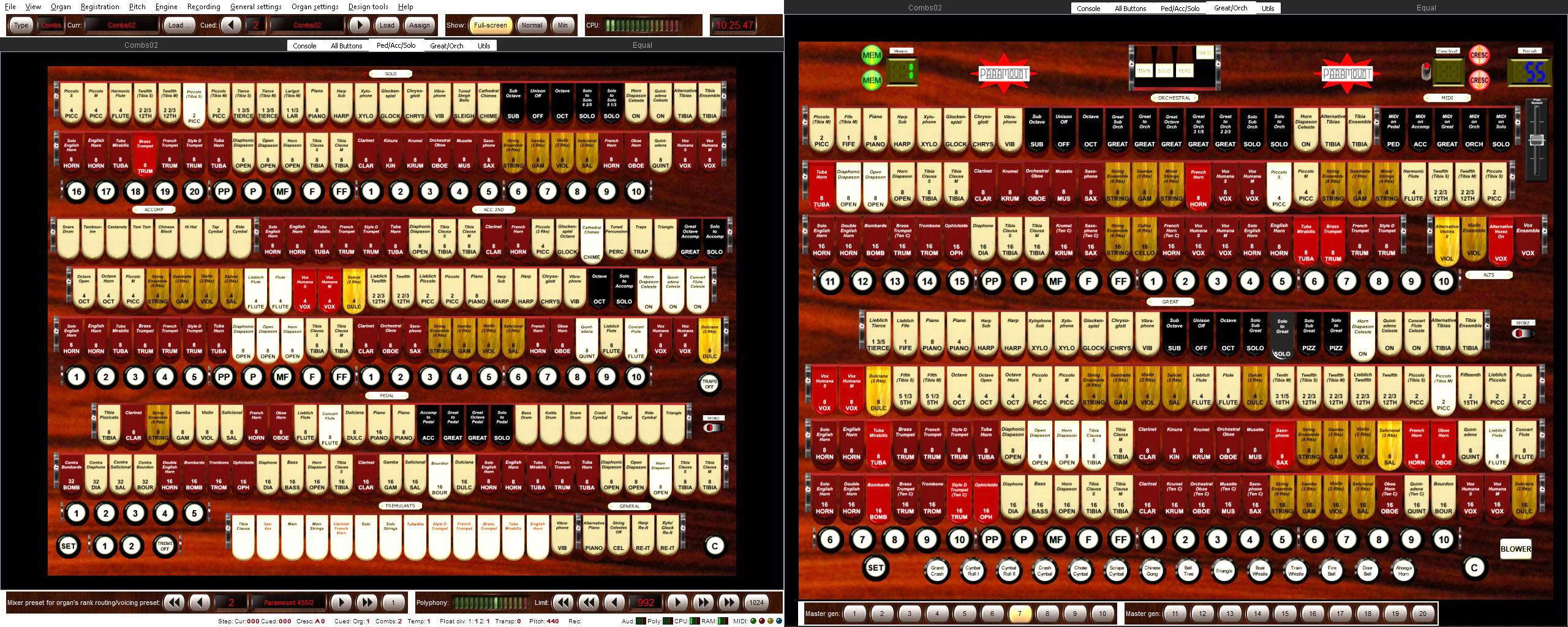

Hauptwerk main interface for Paramount 4/50 |
|
Old Computer I
built t myself about (2016) Now a
Backup |
|
Case |
Fractal
Design Case is the more expensive type and is built to be as silent as
possible. Is lined with sound proofing material and is vented in such
a way as to keep fan noise to a minimum. The computer at the moment
sits beside the organ on the floor and I cannot hear any sound coming
from it. |
|
Motherboard |
Gigabyte Z170-D3H. I choose this because at the time I was using 3
Creamware soundcards that require the old PCI slots. This series were
the first to offer the M.2 socket for NVM Express SSD drives |
|
CPU |
Intel
i7-6700 CPU @ 3.40MHz |
|
Memory |
64 Gb
of Corsair DDR4 3200 MHz |
|
SSD Drives |
Samsung
V-NAND SSD 950 Pro M.2 NVM Express 256 Gb (Extremely Quick
Loading Time)
Samsung SSD 850 Pro 256Gb |
|
Software |
Windows 10 Professional 64 bit / Hauptwerks v6.02 |
|
Soundcard |
RME
HDSPe RayDAT 72 channel PCI Express Card with 4 input ADAT and 4
output ADAT ports supporting 64 ADAT channels |
|
Performance |
ASIO at
48kHz, Buffer size 0128, Number of Buffers 1, RME
buffer 256 total Sound Delay about 10ms.
This version of Hauptwerk didn't calculate delay correctly and ignored
the RME buffer as shown below.
Hauptwerk always runs in Real-time priority with administrator
privileges. |
|
 |
 |
|
|

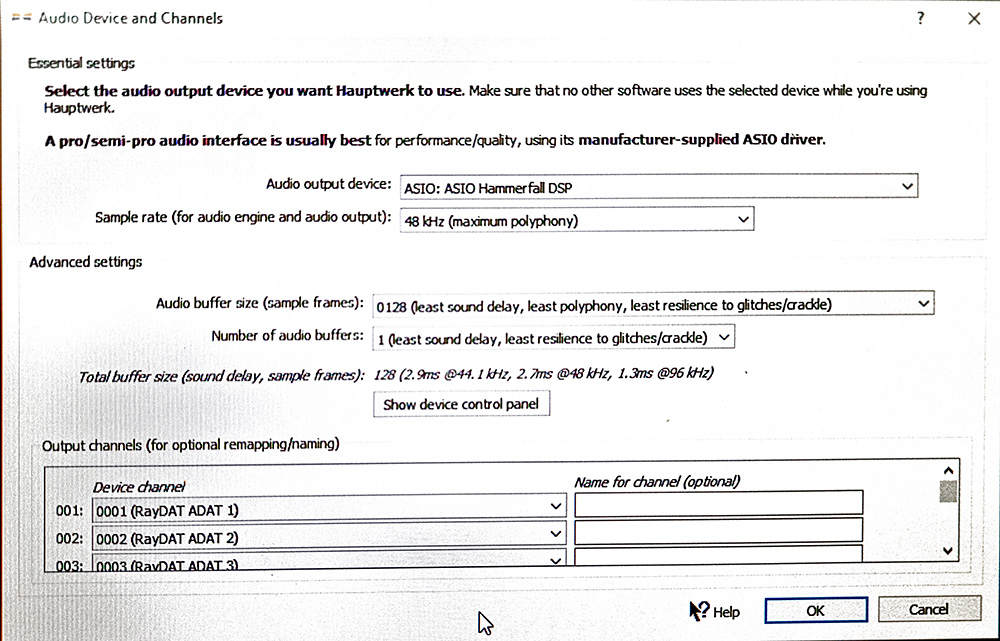

Soundcard
settings |

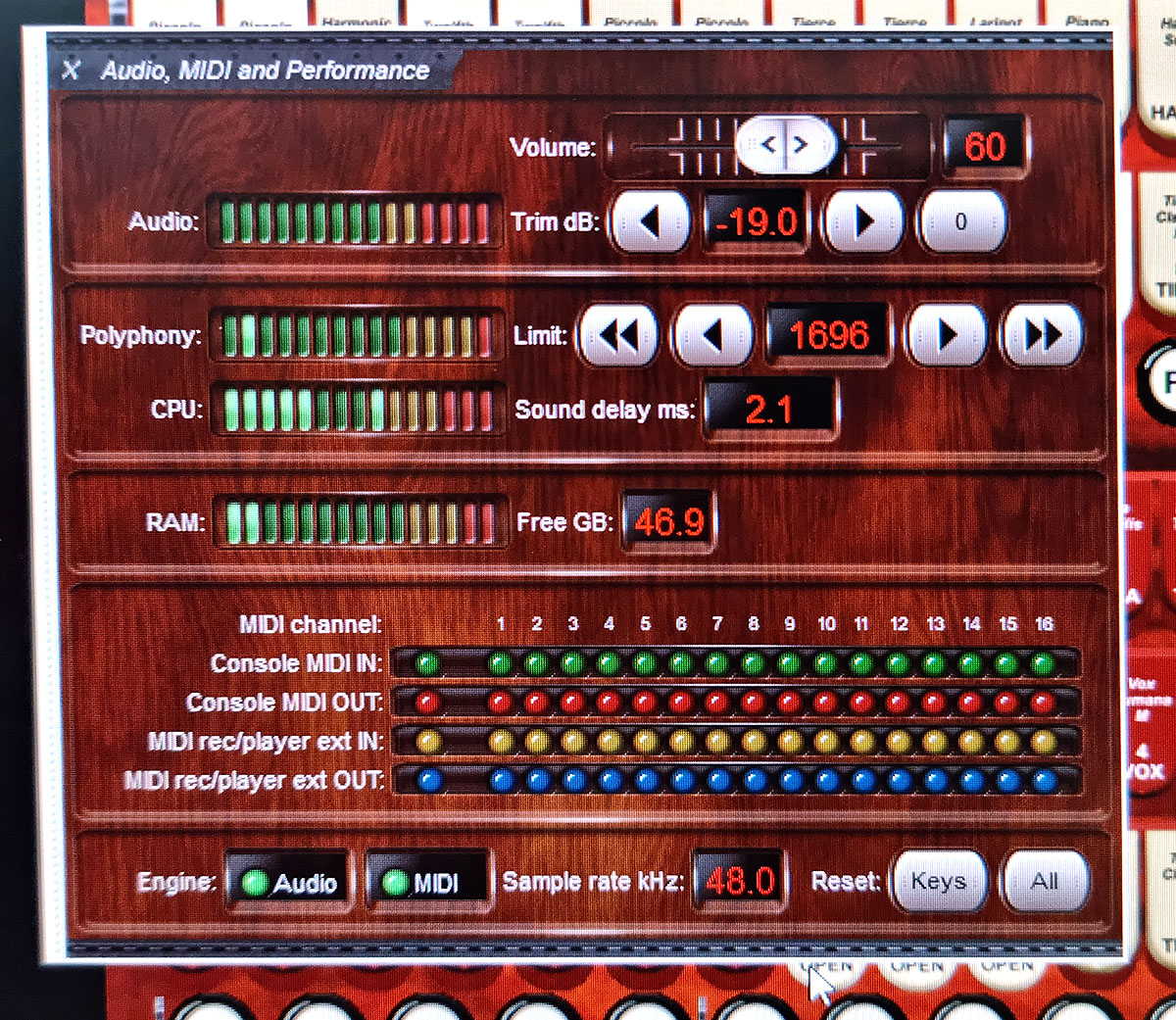

Software settings
CPU will peak into the yellow and very rarely goes into the red. |
RME
HDSPe RayDAT Soundcard |
|

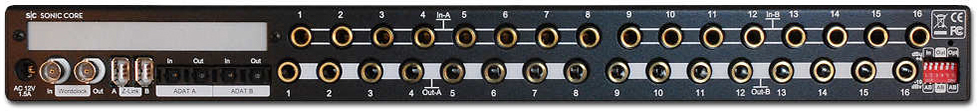

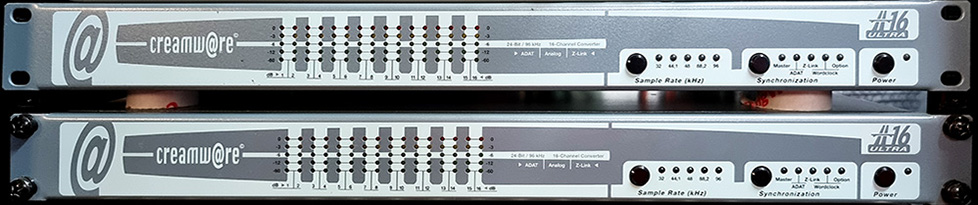

Creamware A16 Ultra Digital ADAT to Analogue Converter. |
 |
 |
|
Converts the 4
ADAT digital outputs from the RME soundcard to
32 analogue outs to the
Mackie mixers then to the amplifiers. |
